Atomization of molten metal alloy

Here we show a short video loop of ultrasonic atomization applied to a molten metal alloy, for producing different metal powders. (The complete video is available on our ftp server – details).

Much more about liquid metals atomizing can be found here: http://www.mastersonics.com/documents/mmm_applications/mmm_atomizing/

The process is similar to atomization of other liquids except for the high temperatures involved. The main challenges (regarding atomizing different metal alloys) were to identify a sonotrode material suitable for direct contact with the molten alloy and to keep the transducer cool by internal water cooling. The results speak for themselves!

Solder-alloys atomizing presentation is here: mpi-solderpowder-presentation.pdf

Non-contact atomizing CIMG2133 AVINon-contact atomizing CIMG2133 AVI

Metallurgical ultrasonics gallery CIMG0492Metallurgical ultrasonics gallery CIMG0492
Oscillating wire atomizer CIMG4174Oscillating wire atomizer CIMG4174

Metallurgical ultrasonics gallery MOV00480Metallurgical ultrasonics gallery MOV00480

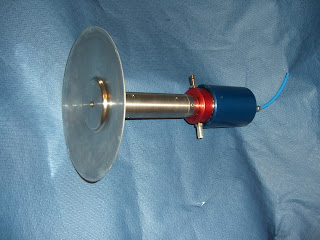

Vibrating plate atomizer CIMG2839Vibrating plate atomizer CIMG2839
Metallurgical ultrasonics gallery DSCN3183Metallurgical ultrasonics gallery DSCN3183
